Cutter suction dredger

2021-7-15
一鍵分享:

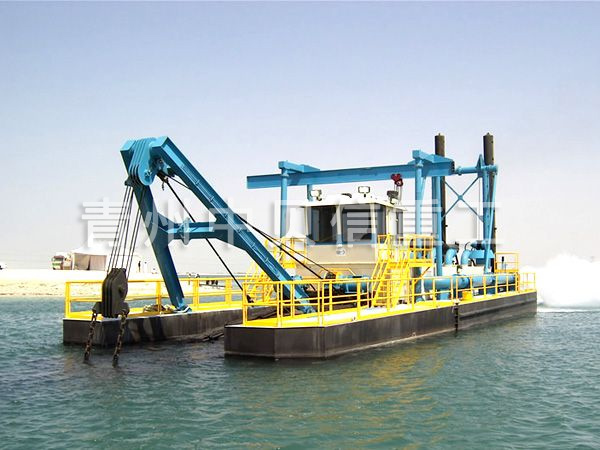

Cutter suction dredger

絞吸式抽沙船

Product introduction

The ship is suitable for construction in closed offshore and inland rivers and lakes with few waves.

Designed according to China ZC classification standard and built according to enterprise standards.

The whole ship is welded steel structure. Three hydraulic winches are located at the front of the main cabin deck, and two positioning pile cylinders are located at the rear of the main cabin. Two anchor rods are located on the floating deck on both sides. Four ballast tanks are located at the front and rear ends of the side appendages.

The whole ship can be disassembled, which is suitable for railway, road transportation and ship transportation.

The engine and pump are located in the middle main engine compartment, and the side hulls on both sides are used as fuel tank, ballast tank and storage bin.

The main engine compartment is watertight.

The winch shaft rotates through sealed bearings and is continuously lubricated by high-level oil located on the deck through pressure.

Spacious and bright operation room specially designed for dredger driver. There is no dead angle when looking out around the room. It is equipped with air conditioning and adjustable seats, and the working environment is good. One driver operates all monitoring instruments, light control buttons and action command buttons.

In the rest room below the operation room, tables and beds can be placed. Equipped with fire prevention device, life buoy and other safety devices.


Product parameters


Serial number

Project content

Technical parameter

1

Total length * hull length * profile width * profile depth

26.2m*1.7m*5.2m*1.5m

2

Average draft

0.8m

3

Dig deep

9m

4

Discharge distance

1500m

5

Clean water flow of sludge pump

1400m3/h

6

Bridge suction pipe diameter

350mm

7

Power and speed

460Kw @ 1350 rmp

 8

Total installed power

490kw
